  • Double-Sided Fine Grinders (FDG-700)

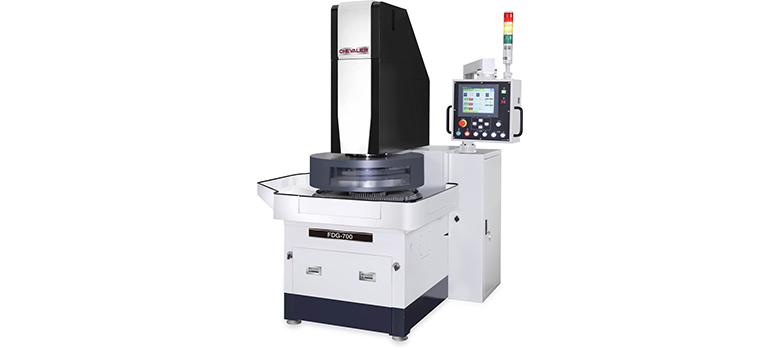

Double-Sided Fine Grinders (FDG-700)

Double-Sided Fine Grinders (FDG-700)

  • FDG-700
  • Product description: High-precision digitally controlled pneumatic system automatically adjusts to set pressure.High-precision contact measuring system, grinding height control and dressing monitoring
  • INQUIRY



  • High-precision digitally controlled pneumatic system automatically adjusts to set pressure
  • High-precision contact measuring system, grinding height control and dressing monitoring
  • Over-stroke protection measuring system
  • 10.4" touch-screen monitor, user-friendly with intuitive operations
  • Compliant with freely programmable process parameters for excellent machining results
  • Easy to operate, set-up and maintain resulting in labor cost savings
  • Multiple processing conditions: grinding mode, coolant system control and upper disk control
  • Optional multi-language support



  • Capacity: Wheel diameter, 700 mm(27.6”); maximum workpiece diameter, 205 mm (8.1”); maximum workpiece grinding thickness, 25 mm (1”); maximum load pressure, 600 kPa
  • Control system: SMART PC Based
  • Upper disk: power 7.5 HP / speed 125 rpm
  • Lower disk: power 7.5 HP / speed 125 rpm
  • Inner disk: power 7.5 HP / speed 75 rpm
